ZD421 Series Desktop Printers
Replacing the popular ZD420, the ZD421 is Zebra’s most popular desktop printer series. Choose from either the thermal transfer (ZD421T) or direct thermal (ZD421D) model.Â
If you need new communication or media handling options, add serial or Ethernet connectivity, plus a peeler or a cutter, right on site. The optional battery converts the ZD420 printer into a cordless mobile printer, powering it for a full shift when placed on a mobile cart.
Specifications
Print Width
4.09 in./104 mm for 203 dpi
4.27 in./108 mm for 300 dpi
Maximum Print Speed
6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Communication Methods
USB v2.0 (Standard)
RS-232 Serial (Option)
10/100 Ethernet (Option)
Wireless: 802.11ac with Bluetooth 4.1 (Factory installed option)
Print Resolution
203 dpi/8 dots per mm
300 dpi/12 dots per mm
Specifications
Print Width
4.09 in./104 mm for 203 dpi
4.27 in./108 mm for 300 dpi
Maximum Print Speed
8 in./203 mm per second (203 dpi)
6 in./152 mm per second (300 dpi)
Communication Methods
USB v2.0
RS-232 Serial
10/100 Ethernet
Wireless: 802.11ac with Bluetooth 4.1 (optional)
Print Resolution
203 dpi/8 dots per mm
300 dpi/12 dots per mm

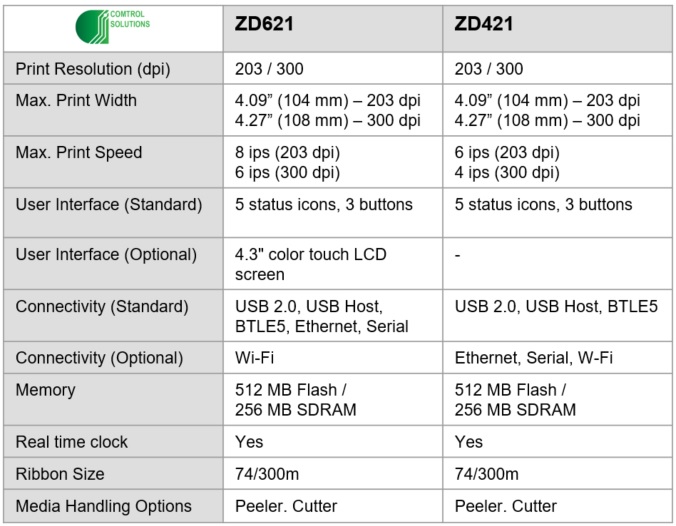

Comparing the ZD621 (premium desktop printer) and ZD421 (desktop printer)
The Zebra ZD621 and the ZD421 have much similarities are are both popular models, with the ZD621 priced slightly higher than the ZD421.
LCD Screen: Unlike the ZD421, ZD621 has the advantage of an LCD screen which simplifies setup and configuration, making it easy for users to customize printer settings according to their specific requirements. With guided on-screen prompts and intuitive navigation menus, users can effortlessly adjust print settings, calibrate media, and troubleshoot issues directly from the printer interface.
Connectivity Options:Â The ZD621 printer comes default with USB, Ethernet and Serial communication. This provides greater flexibility in connecting to various devices and networks, enabling seamless integration into different workflows. If require only USB connectivity and appreciate the cost savings, request for the ZD421 that comes supplied with only USB.
Print Speed: Both the ZD621 and ZD421 are able to accomodate slower print speeds of 2″/sec and fastest print speeds of 6″/sec. Users who wish to achieve a high quality printout may appreciate the slower print speed which is not possible in lower end models like the ZD220 and ZD230.
Ribbon Cartridge Printer: If you appreciate the easy to load cartridge option, it is only available on the ZD421 (model ZD421C) and not available on the ZD621.
Change your ribbon in a matter of seconds
ZD421c – The new Thermal Transfer Cartridge model.
If you are using a thermal transfer printer you know the frustration with changing ribbons. For operators in healthcare or cleanroom manufacturing, changing a ribbon is an undesirable task as they often stain their hands. The ZD421c is the first and only ribbon cartridge printer in the market. Unlike traditional ribbon rolls, the printer alerts you when the ribbon needs replacement and with the cartridge, this can be done in a matter of seconds without contacting the ribbon. Watch the following videos to find out how.
ZD410 Compact Desktop Printer
The ZD410 is the slimmest direct thermal printer in its class, fitting easily in the most space-constrained work space or shelf. The ZD410 is a direct thermal printer available with either 203 dpi or 300 dpi print resolution. For applications that require a thermal transfer printer, Zebra offers the TLP2824 Plus.Â
Specifications
Print Width
2.2 in./56 mm for 203 dpi
2.2 in./56 mm for 300 dpi
Maximum Print Speed
6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Communication Methods
USB v2.0
RS-232 Serial (optional)
10/100 Ethernet (optional)
Wireless: 802.11ac with Bluetooth 4.1 (Factory installed option)
Print Resolution
203 dpi/8 dots per mm
300 dpi/12 dots per mm
